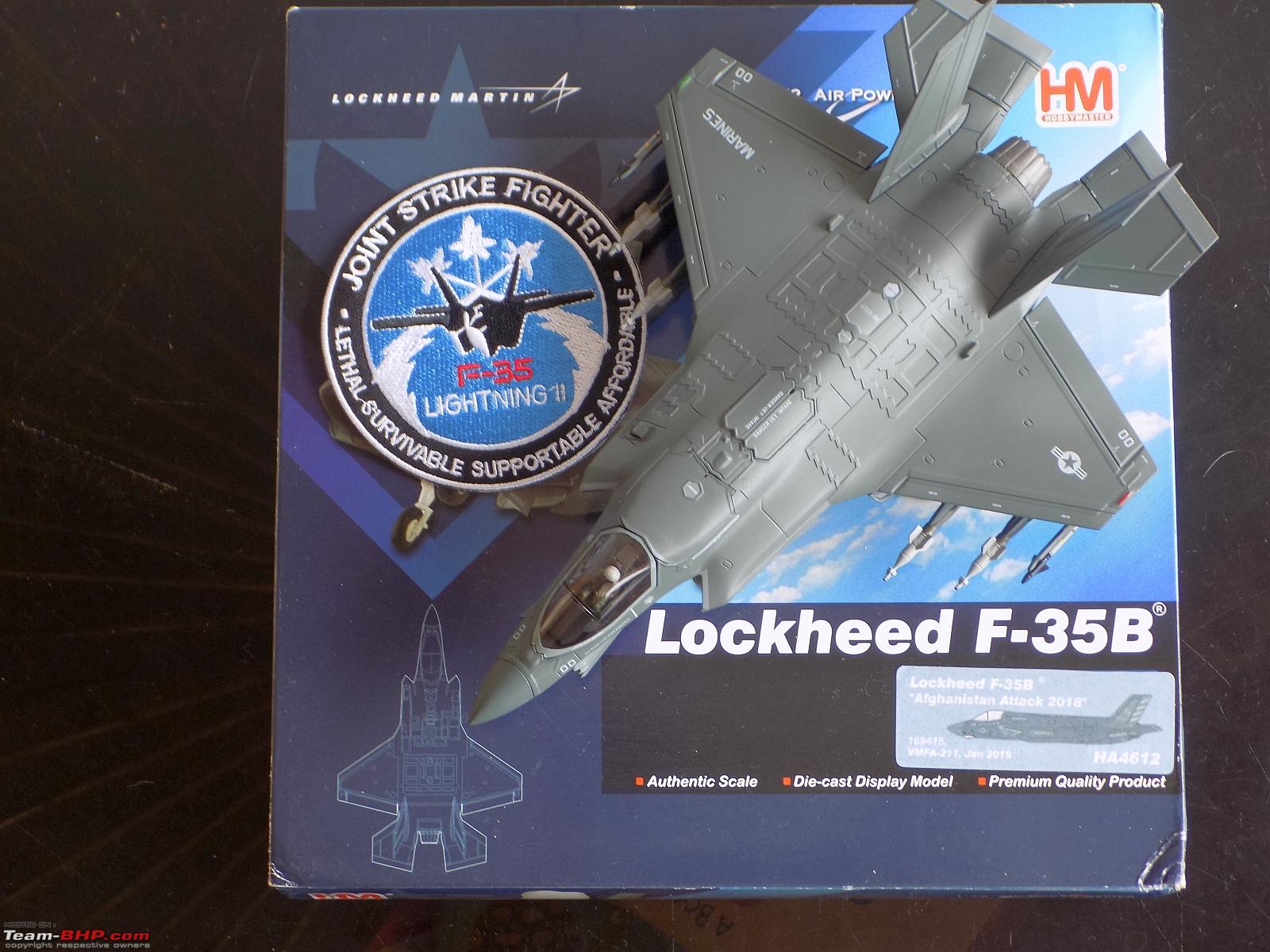

Senior - BHPian ![]() | Re: Scale Models - Aircraft, Battle Tanks & Ships 1:72 Lockheed Martin F-35B Lightning II VMFA-211 "Wake Island Avengers"/"Bastion Defenders", United States Marine Corps (Hobbymaster) The F-35B Lightning II is the VSTOL(Vertical and/or Short Take-off & Landing) variant of the F-35 and features a vertical lift fan and pivoting engine nozzle to deliver vertical landing and short takeoff capability( very similar to and rumored to be a direct & much improved copy of the technology from the Yak-38 & 141). The F-35B is a direct replacement for Harrier IIs that were operational around the world. Unlike the F-35 & C variants, the F-35B has no landing hook. The "STOVL/HOOK" control instead engages conversion between normal and vertical flight. The B variant is considerably “fatter” and bulkier than the F-35A as a result of the integration of the lift fan. The image below overlays the fuselage shape of the F-35A over the F-35B, with the B being in orange. As a result of the increased frontal profile, the B has more drag. ![]() This makes it slower to accelerate and harder to turn. Practically, the F-35B takes approximately eighteen more seconds to accelerate from Mach 0.8 to Mach 1.2 compared to the F-35A. The increased profile and different weight also affects the potential turn rate, but practically, the F-35B is limited to pulling 7Gs maximum to avoid damage to internal components. The B also has less internal fuel, but this is to be expected as it has additional parts that take up space in the fuselage that the A doesn’t. This limits its effective combat range versus the A, but it still is far superior to the other VSTOL aircraft that preceded it. Weapons-wise, there are a few small but important differences between the F-35A and F-35B. The most obvious one is the omission of the gun at the wing root on the F-35B due to the different fuselage shape.The F-35B instead can carry the GAU-22/A Avenger Gunpod on the centerline station with a stealthy fairing. This pod can carry an additional forty rounds versus the F-35A’s internal gun, and could potentially be more accurate as it’s directly center relative to the HUD and cockpit. The weapons that the F-35B can carry internally are also different than the F-35A. Again, due to different requirements and fuselage shapes, the internal weapon bays of the F-35B carry less weight than the F-35A. The biggest implication is that the F-35B cannot carry the massive two-thousand-pound bombs stealthily, in order to employ them they must be hung from the external weapon pylons. Most of the United States’ “bunker-buster” bombs weigh that much, so the F-35B would not be able to perform a stealthy mission against a deep hardened target, whereas the F-35A would. The two and ten pylons on the wings also can carry less weight, so the F-35B has less overall munitions capability than the F-35A in that regard as well. However, it’s unlikely that the F-35B would want to operate at its max load in the first place given that it cannot vertically land with the maximum weight. If the F-35B took off with the maximum takeoff weight, it either would have to expend its stores in combat or jettison them before landing. All of these limitations may make it seem like the F-35B once in flight is by and large just a worse version of the F-35A. While this is true, it’s important to consider the roles of the aircraft. The F-35B is far closer in capability to the F-35A than the AV-8B was to the F-16C. The AV-8B couldn’t even go supersonic, it had significantly fewer hardpoints, and its radar, while decent was worse than the F-16C. The F-35B, by comparison, is pretty much the same aircraft as the A, with just some limitations on maneuverability and weapons. It features the same top-notch sensor systems, radar, and datalink capabilities that the A brings to the table. The F-35B was designed to operate from austere bases and a range of air-capable ships with its short takeoff/vertical landing capability, the F-35B can also takeoff and land conventionally from longer runways on major bases. F-35Bs have been delivered to the U.S. Marines, Royal Navy/Air Force( jointly operated), Aeronautica Militare (Italian Air Force) and Marina Militare(Italian Navy). The F-35B has a Lift Fan just behind the cockpit and am engine nozzle that can swivel 90 degrees when in short takeoff/vertical landing mode. Because of the Lift Fan, the F-35B variant has a smaller internal weapon bay and less internal fuel capacity than the F-35A. Unlike the F-35A, the F-35B uses the probe and drogue method of aerial refueling. The F-35's low observable stealth allows it to safely enter areas without being seen by radars that 4th generation fighters cannot evade. The combination of the stealth features, the F-35’s active electronically scanned array (AESA) radar technology, and the aircraft’s ability to carry weapons internally means the F-35 can engage ground targets at long ranges without detection and use precision weapons to successfully complete air-to-ground missions. F-35's Lift Fan The Rolls-Royce LiftSystem, together with the F135 engine, is an aircraft propulsion system designed for use in the STOVL variant of the F-35 Lightning II. The Pratt & Whitney F135 is an afterburning turbofan developed for the Lockheed Martin F-35 Lightning II, a single-engine strike fighter. The F135 family has several distinct variants; a conventional, forward thrust variant and a multi-cycle Short Take-Off Vertical Landing STOVL variant that includes a forward lift fan. There are 3 F-135 variants: the -100 engine, -400 engine, and the -600 engine. The -400 is similar to the -100, the major difference being the use of salt-corrosion resistant materials. The -600 is described below with an explanation of the engine configuration changes that take place for hovering. The engine and Rolls-Royce LiftSystem make up the Integrated Lift Fan Propulsion System (ILFPS). The lift for the STOVL version in the hover is obtained from a 2-stage lift fan (about 46%) in front of the engine, a vectoring exhaust nozzle (about 46%), and a nozzle in each wing using fan air from the bypass duct(about 8%). ![]() There are two primary components that provide the vertical lift necessary for hover – the LiftFan and 3-Bearing Swivel Module (3BSM). The LiftFan is mounted horizontally right behind the cockpit. As the aircraft transitions to hover mode, two doors open on top of the aircraft and the two counter-rotating fans blow about 20,000 pounds of unheated air straight down, producing almost half of the downward thrust needed for a pure hover mode. The majority of the remaining vertical thrust is provided by the 3BSM at the rear of the aircraft. With the ability to swivel ninety-five degrees downward in just two and half seconds, the 3BSM can direct up to 18,000 pounds of heated thrust from the engine exhaust. For stabilization and control, there are also two roll posts under the wings that provide approximately 10 percent (up to 2,000 pounds each) of the downward thrust drawn from engine air flow. Most importantly, the two roll posts are used to control aircraft attitude, or its orientation in relation to the earth, in the roll axis. The exhaust areas of the two roll posts can be varied independently. The posts, therefore, control roll by expelling different amounts of thrust between the two sides of the aircraft. ![]() Lt Col Chris "Otis" Raible's Heroism In April 2012, VMA-211 "The Wake Island Avengers", then equipped with AV-8B Harrier IIs deployed to Afghanistan in support of Operation Enduring Freedom in April 2012. They moved from Kandahar Airfield to British-run Camp Bastion in July 2012. The squadron's commanding officer, Lt. Col. Christopher "Otis" Raible, was the first to land at Camp Bastion. The Taliban raided Camp Bastion on the night of 14 September 2012. The base hosted British, American, Danish and Tongan military personnel at the time of the attack. Lt. Col. Raible was nearing the end of his combat deployment in Afghanistan. Just after 2200 local time, Lt. Col Raible was returning from dinner after flying a combat mission in an AV-8B Harrier earlier that day. Fifteen Taliban insurgents wearing stolen U.S. uniforms infiltrated Camp Bastion’s security perimeter and attacked U.S. Marine AV-8B Harriers parked inside the compound using rocket-propelled grenades , machine guns and suicide vests. In response after insuring the safety of his Marines, Lt. Col. Raible, armed only with a sidearm, hurried to the area of the attack. Lt. Col. Raible determined the well-organized insurgent force had split into three groups: two tasked with destroying Marine AV-8B Harriers and the third group moving to kill U.S. Marines in their sleep. Lt. Col. Raible ran 100-yards across open area under insurgent fire and rallied a group of aircraft maintenance personnel to mount a counter attack against the insurgents. Armed only with a handgun, Lt. Col. Raible’s swift, aggressive action temporarily stopped the Taliban insurgent attack and enabled Marines to organize an effective counterattack that lasted over four hours. The counterattack by the Marines eventually neutralized the infiltrating insurgents after they had destroyed six AV-8B Harriers. Unfortunately, Marines Lt. Col. Chris Raible and Sgt. Bradley Atwell were killed during the counter-offensive. It was also the greatest loss of U.S. Marine aircraft since the Vietnam War.O ne Marine wounded during the attack later told a reporter about Lt. Col. Raible’s gallantry, “My commanding officer never feared death and would want us to keep fighting. That’s what he would do.” The Taliban claimed that the raid was in response to the film, Innocence of Muslims, and have also stated that Prince Harry, who was stationed at the base at the time, was the target of the attack. To replace the aircraft lost in the attack, the USMC deployed 14 Harriers to Afghanistan 36 hours after the raid. After returning from Afghanistan, VMA-211 conducted their last AV-8B Harrier flight on 6 May 2016 and received their first two F-35B Lightning IIs on 9 May. On 30 June 2016, VMA-211 was redesignated as VMFA-211, becoming the second fleet squadron in the Marine Corps to operate the F-35B Lightning II as their primary aircraft. In September 2018, VMFA-211 deployed aboard USS Essex as part of the Essex Amphibious Ready Group deployed to the United States Central Command area of operations. On 27 September 2018, the squadron's F-35Bs from USS Essex carried out an air strike using a precision-guided bomb against a Taliban position in Afghanistan, marking the first US combat use of the F-35. It was this strike Successful Strike that Honored that the squadron's former CO - Lt Col Raible. Lt. Col Chris “Otis” Raible’s name was painted on one of the F-35B's in the strike force to honor his memory an the remarkable story of hus heroism while commanding the very same unit that flew this historic first U.S. F-35 strike. On the other side of the aircraft, it carried the name of Major Henry Talmage "Hammerin' Hank" Elrod. Maj. Elrod was the first Marine airman to be awarded the Medal of Honor in World War II. On December 4, 1941, then Captain Elrod of VMF-211 flew to Wake Island with twelve F4F-3 Wildcats, twelve pilots, and the ground crew of fighter squadron, VMF-211. Hostilities in the air over Wake Island commenced on December 8, 1941. On December 12, he single-handedly attacked a flight of 22 enemy planes and shot down two. He executed several low-altitude bombing and strafing runs on enemy ships; during one of these attacks, he became the first man to sink a warship, the Japanese destroyer Kisaragi, dropping bombs onto the destroyer's stern, causing the depth charges to explode. Over the next few days, when all the U.S. aircraft had been destroyed by Japanese fire either on the ground or int the air, he organized remaining troops into a beach defense unit which repulsed repeated Japanese attacks. On December 23, 1941, Captain Elrod was mortally wounded while protecting his men who were carrying ammunition to a gun emplacement. The Japanese eventually captured the Island. Capt. Elrod was posthumously promoted to Major on November 8, 1946, and his widow was presented with the Medal of Honor for his heroic actions during the defense of Wake Island. This is how VMF-211 were bestowed with the name "Wake Island Avengers" for the heroism of the squadron during the Battle of Wake Island. ![]() ![]() ![]() ![]() ![]() ![]() ![]() Bomb markings & Cannon firing markings on the nose gear door: ![]() ![]() ![]() ![]() ![]() ![]() ![]() The Terma A/S multi-mission pod (MMP) carrying the GAU-22/A cannon and 220 rounds; mounted on the centerline of the aircraft and shaped to reduce its radar cross-section. In lieu of the gun, the pod can also be used for different equipment and purposes, such as electronic warfare, aerial reconnaissance, or rear-facing tactical radar. ![]() ![]() ![]() Last edited by skanchan95 : 24th May 2022 at 12:36. |
![]() | ![]() ![]() |
The following 4 BHPians Thank skanchan95 for this useful post: | badboyscad, Foxbat, SnS_12, V.Narayan |
![]() | #1806 |

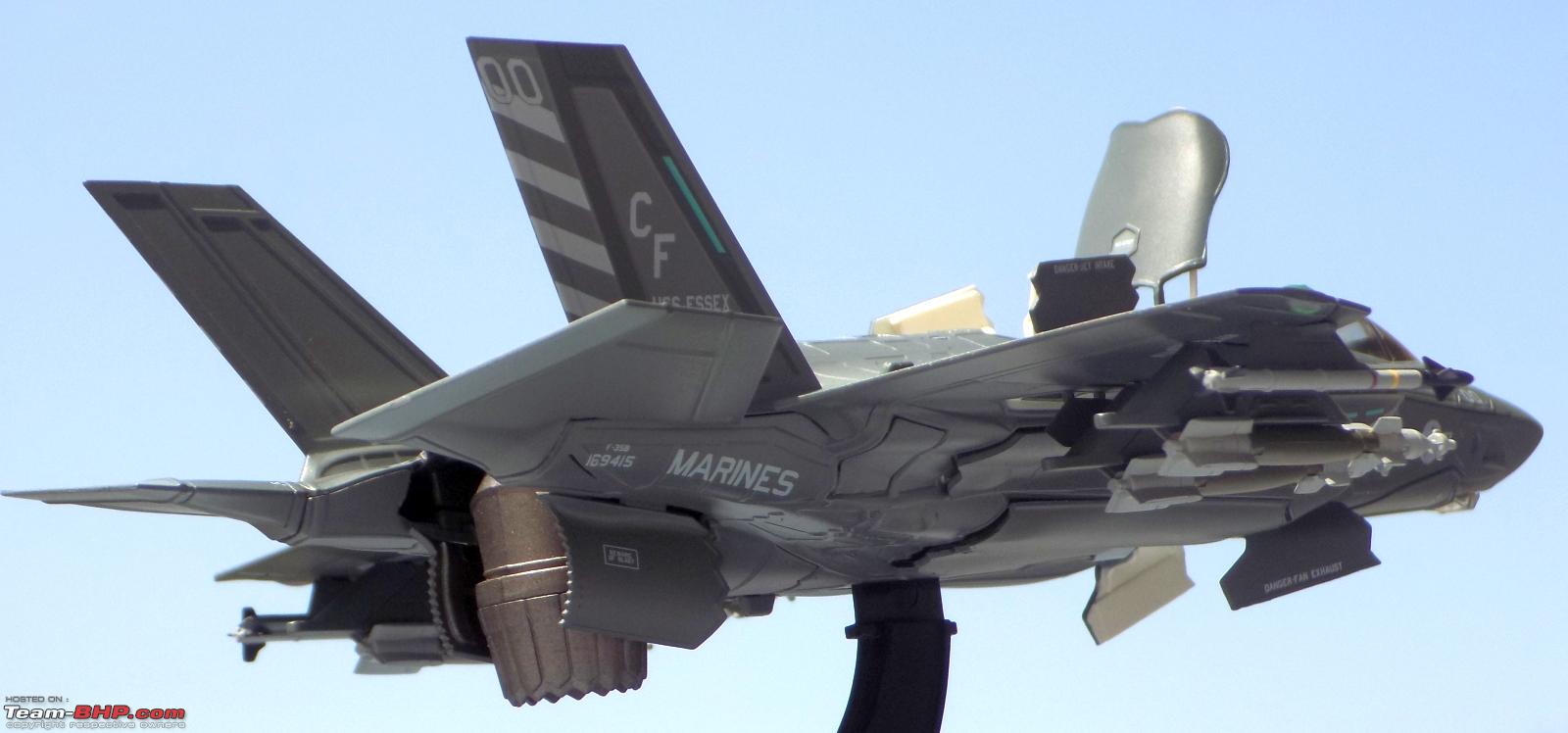

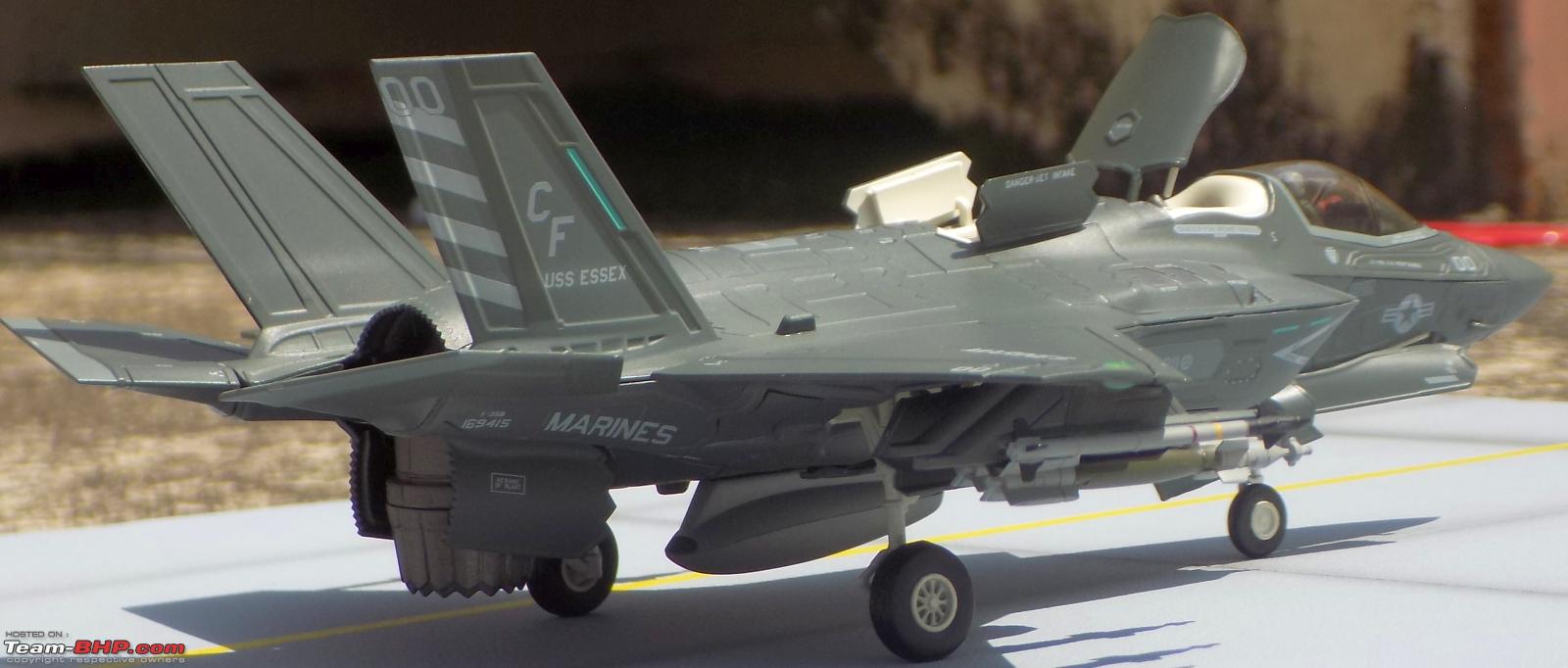

Senior - BHPian ![]() | Re: Scale Models - Aircraft, Battle Tanks & Ships VSTOL Mode ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() For lateral stability and roll control, bypass air from the engine is used in a roll-post nozzle in each wing. For pitch control, the areas of exhaust nozzle and LiftFan inlet are varied while keeping the total lift constant. Yaw control is achieved by yawing the thrust vectoring nozzle at the rear of the aircraft. Forward, and also backward, motion is controlled by tilting the thrust vectoring nozzle and vanes in the LiftFan variable area vane box nozzle ![]() ![]() ![]() ![]() ![]() ![]() |
![]() | ![]() ![]() |
The following 3 BHPians Thank skanchan95 for this useful post: | badboyscad, SnS_12, V.Narayan |
![]() | #1807 |

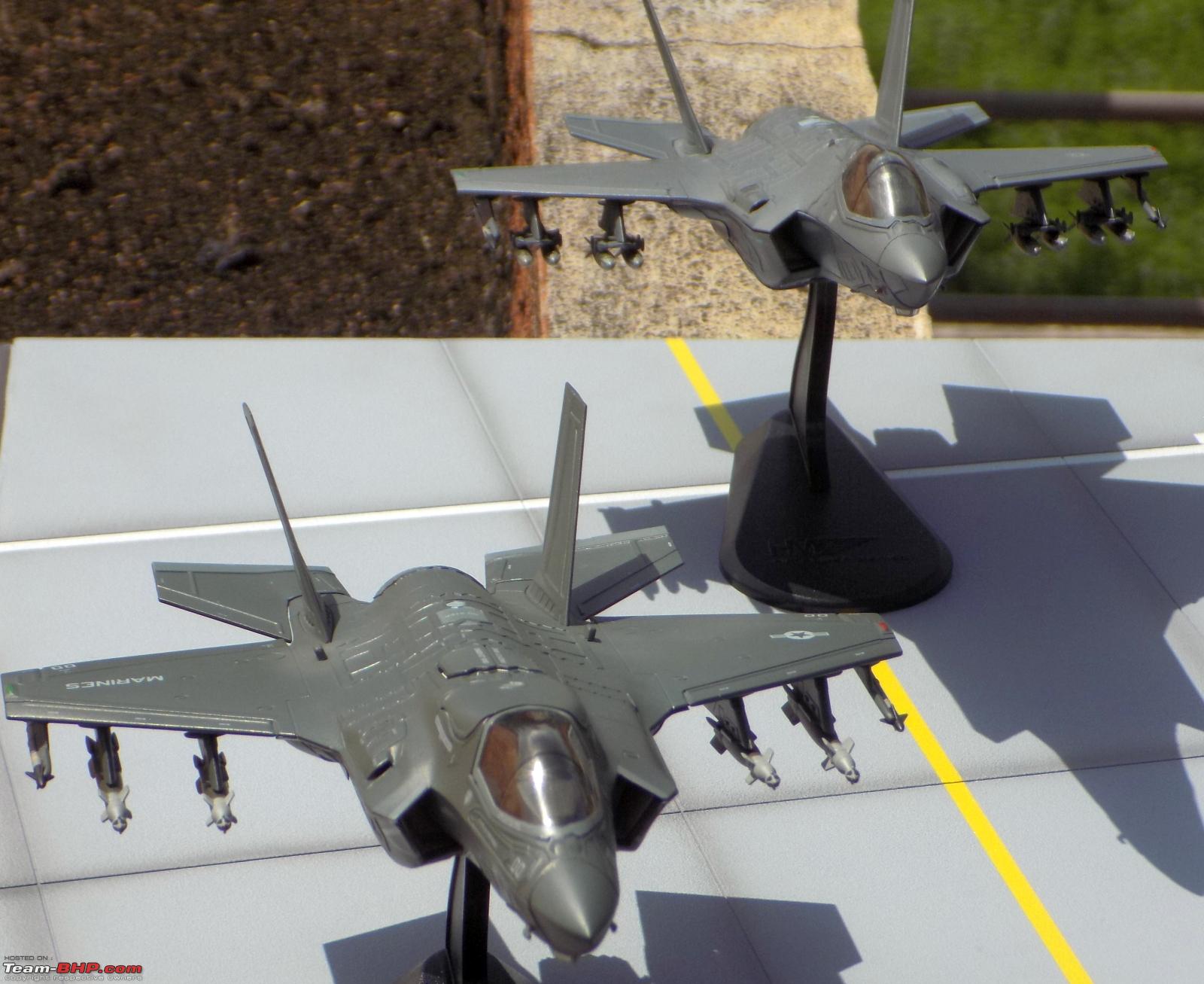

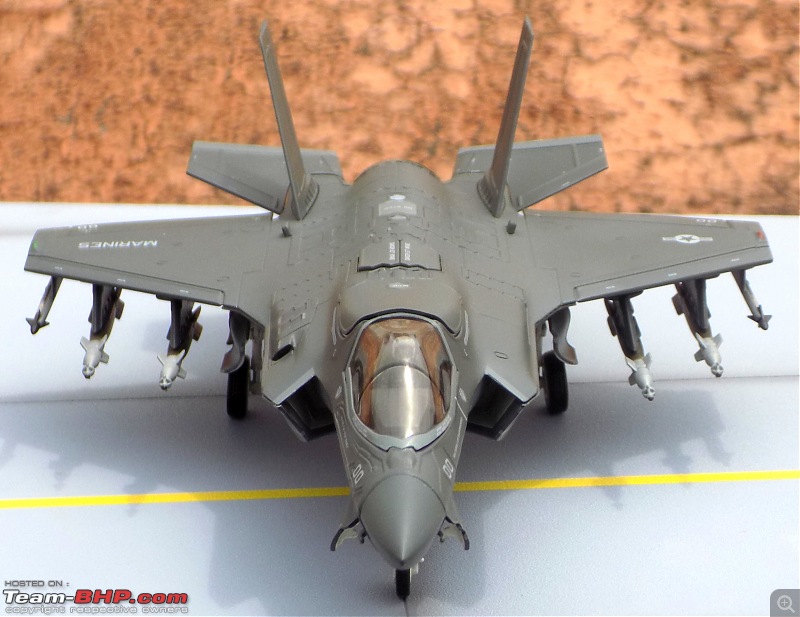

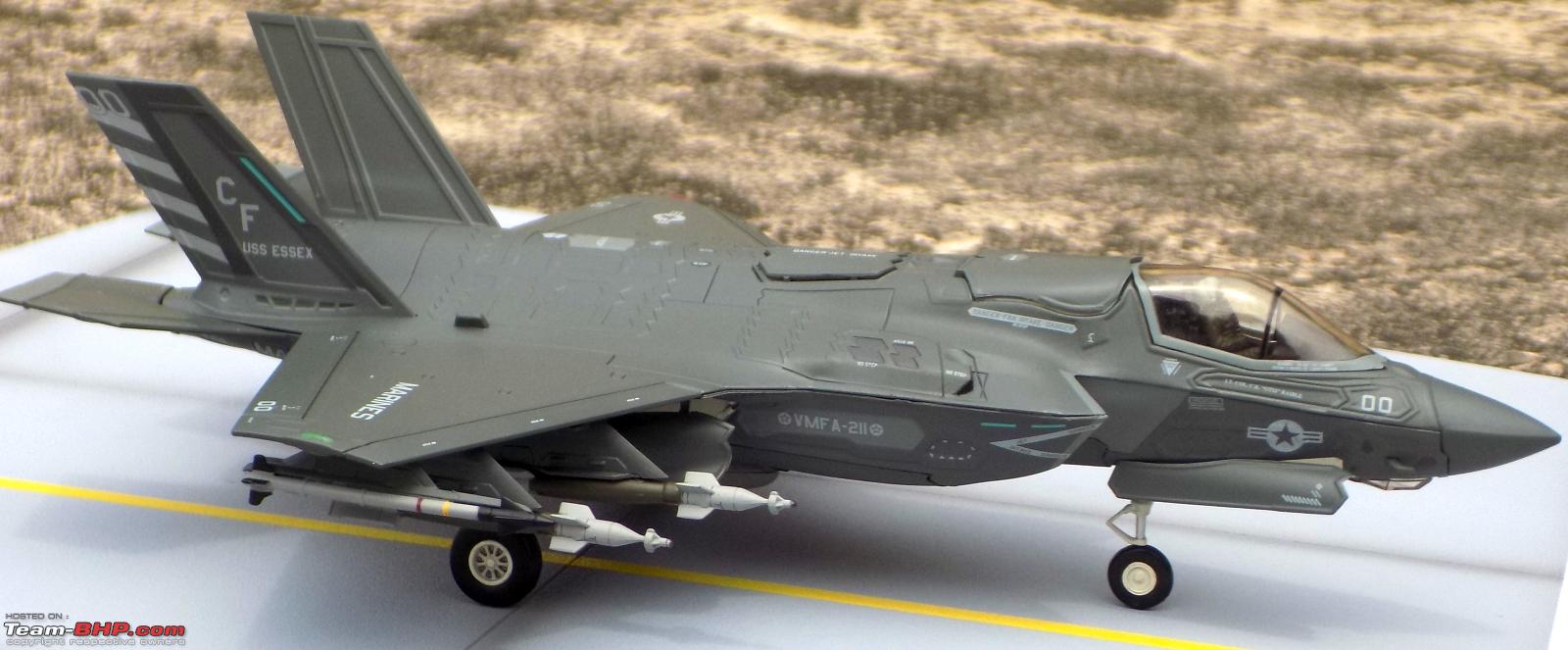

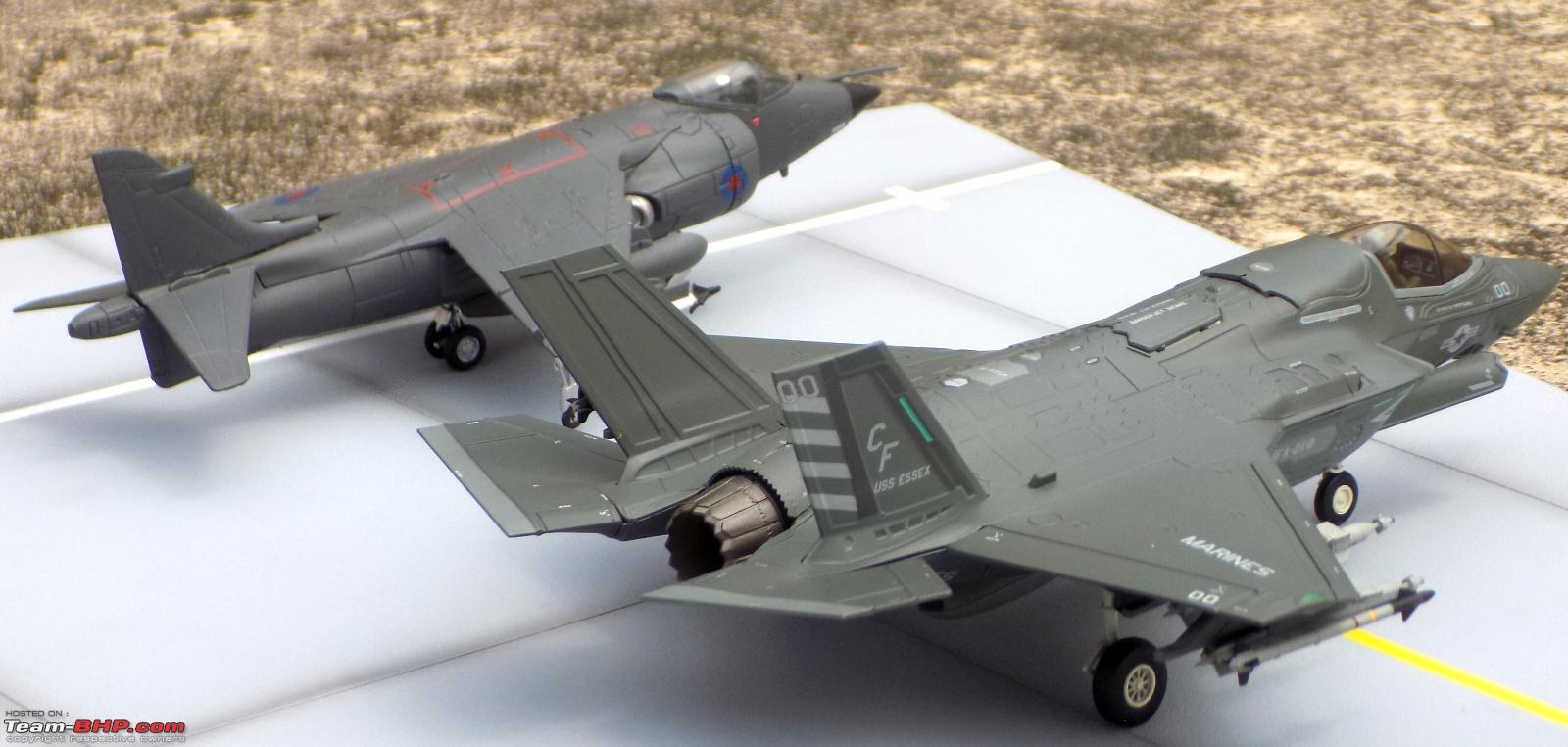

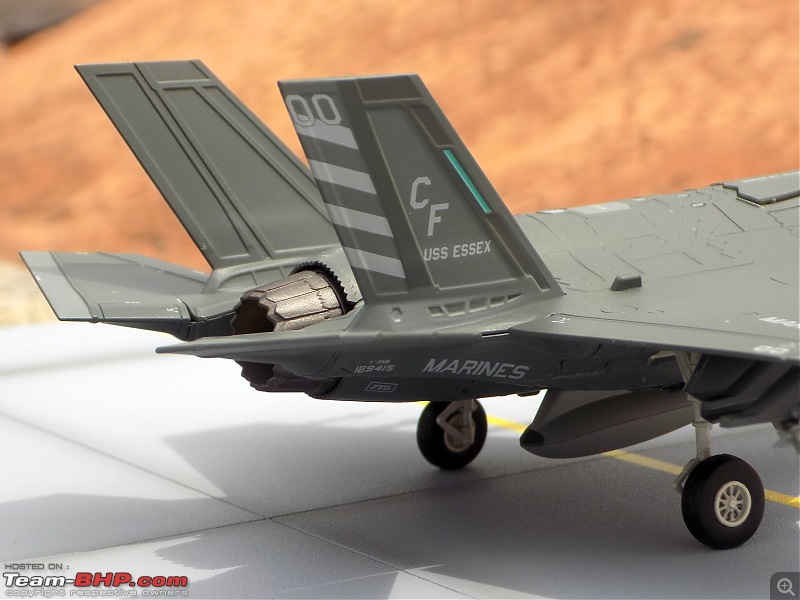

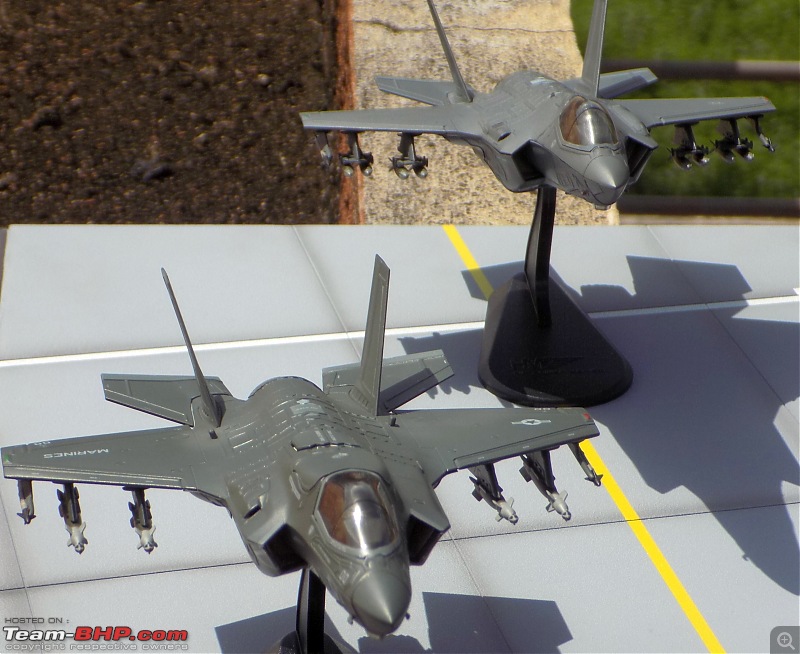

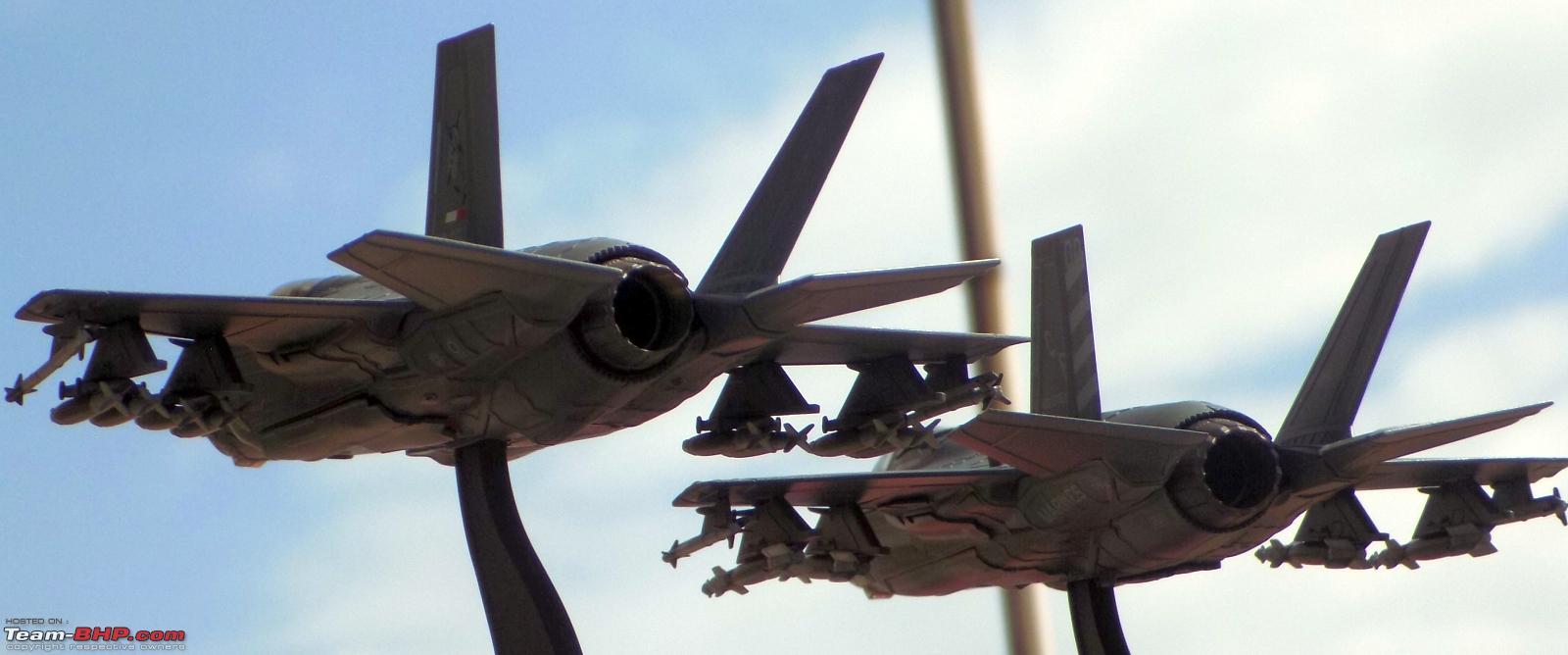

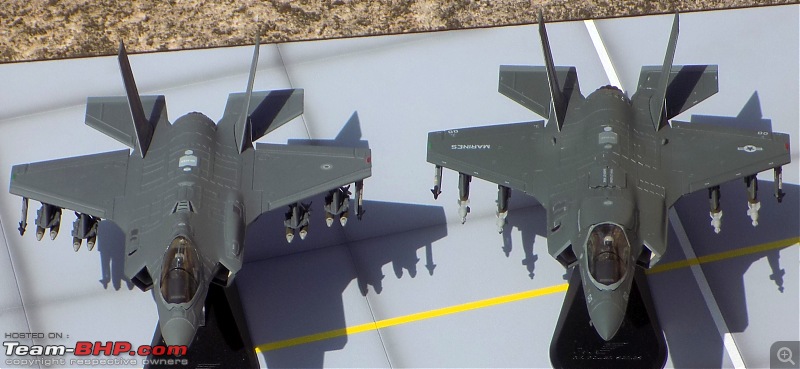

Senior - BHPian ![]() | Re: Scale Models - Aircraft, Battle Tanks & Ships Lightning does strike Twice ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() The F-35B's canopy is smaller. The space behind the cockpit is occupied by the Lift Fan on the F-35B, which makes it to look as if the F-35B's pilot sits lower than is the case for the F-35A & F-35C — but it doesn't. ![]() ![]() My Marine Fighter Wing ![]() ![]() ![]() ![]() ![]() ![]() ![]() The Original Jumpjet and it's spiritual Successor ![]() ![]() ![]() ![]() Last edited by skanchan95 : 24th May 2022 at 13:43. |
![]() | ![]() ![]() |
