Back in Feb 2016, we installed the OEM VW anti-glare rear view mirror which is given as a standard equipment with the Jetta and Passat.

Since I found some spare time last weekend, I thought of doing a write-up of the installation. Just for the record, this DIY will focus only on the installation of the anti-glare mirror. The installation of the RLS (rain-light sensor) will follow up later on.

Parts Required:

1. Anti-glare mirror assembly – 56D 857 511B SMA



   This one comes with a pearl grey and black color combination. There’s a different variant which comes in all beige.


2. Mount – 1K0 845 543B



   This is a metal mount which is stuck to the windshield. The mirror slides onto this mount. I sourced 2 mounts - one for installing the mirror and the other for the RLS.


3. Mount cover - 1K0 858 547 9B9, 1K0 858 548 9B9



   The mount covers clip to each other hiding the unwanted bits of the assembly.


4. Harness cover – 5SZ 1K0 857 593A, 5SZ 1K0 857 594



   The harness cover routes the harness which goes from the headliner to the mirror.


5. Headliner trim – 5N0 857 304 9B9



   The headliner trim goes into the hole on the headliner through which the harness cover comes out.


6. RLS – 1K0 955 559 AH



   This one is not essential for the anti-glare mirror retrofit and can safely be omitted if it is only the mirror you’re looking to install. The RLS is used to turn on the wipers automatically when it senses the water droplets on the windshield and to close the windows after a 24 hour gap (if the car is unused and any of the windows are left open).


7. Harness:



   No specific part numbers for the harness. This harness is used to connect the mirror and the RLS. If you don’t intend to use the RLS simply tuck the relevant connector inside the headliner trim.

   A shot of all the contents:




8. Fuse tap cable:



   You’ll need this to tap a +12V connection from the car’s fuse box without any cutting/splicing/soldering/taping involved. Consider an extra one if you intend to connect the RLS as well as it goes into a different fuse slot (requires power even after the car is locked).

Tools Required:

1. Utility blade - for cutting the hole on the headliner trim and the template on the self-adhesive paper. I have a Stanley 10-175 utility knife with replacement blades and has served me for most of the plastic/trim cutting till date. The blades wear out over time and I have a set of replacement blades handy just in case.


2. Trim removal tools – for removing the driver side A-pillar trim. Although one can whack the end of the A-pillar trim to remove it off the first clip, it’s a good idea to use the tool so as to not damage the trim.


3. Crimping tool – to crimp the +12V cable with the fuse tap cable. The fuse tap cable usually comes with a butt crimp at the end of the cable. Else a butt crimp or a soldering iron + solder + heatshrink sleeve + heat gun may be used to connect the joint and cover it up neatly.

Misc. things Required:

• Masking tape – to secure the harness along the A-pillar and hold the mount to the windshield after the glue was applied to the base. Similar alternatives may be used. Consider having a bottle of Mr Muscle spray and a microfiber cloth to clear the sticky residue the tape leaves on the windshield.


• Bondtite Fast & Clear adhesive – to stick the mount to the windshield. I used a 6g pack which comes with 2 tubes; sufficient for this installation. The glue is whitish in appearance after mixing, sets in about an hour and has a curing time of 24 hours.

  Ideally a primer and a polyurethane glue is required which is also used to stick the windshield with the frame of the car but I decided to use this instead as it was inexpensive and hasn’t caused any trouble in the long run despite the car being parked under the sun over long hours, driving over bad roads with severe undulations and potholes and rotating the mirror by holding it - the mount is still intact.


• A4 self-adhesive paper – to print the template of the mount which is then cut and stuck on the windshield. This paper ensures that any excessive epoxy glue doesn’t spread outside the mount on the windshield. If it does, it will go over this paper which is removed at the end ensuring a clean job. You'll get this is most stationery shops.


• 1200 grit sandpaper – to clean the mount before the epoxy glue is applied.


• Toothpick – or something similar to apply the glue over the mount.


• A piece of cardboard – 100 mm x 100 mm area from a discarded box to draw and cut the cutout template for the headliner trim.

Wiring diagram:

From ELSAWIN, this is the relevant current flow diagram:



Procedure:

1. Take two printouts (an extra one just in case) of the template (Template.pdf) on the self-adhesive A4 paper.

   Cut along the boundaries of the inside and the outside of the template using the utility knife. Take time and do it.


2. On the piece of cardboard, using the headliner trim (part no. 5), mark the outer boundary. Use the utility knife to cut out the area (resembling a triangle of sorts) and insert the trim over the piece to check if it goes inside.

   If it does very smoothly, the cut is probably a notch too big. Repeat the step but give it a smaller cut this time. The same cutout is going to be marked over the headliner trim and cut. And the trim should have a snug fit with the headliner and you will get only one shot at this! Give it a couple of iterations if required.

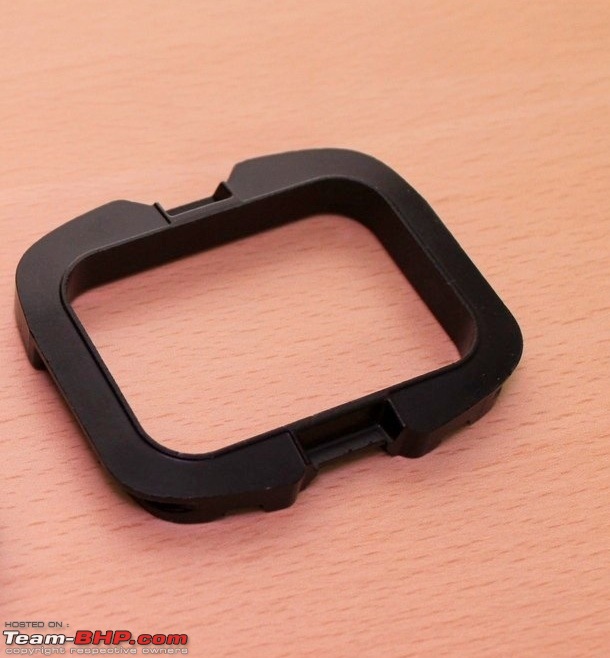

3. Using the 1200 grit sandpaper, lightly sand the surface of the mount which sticks to the windshield. It is this surface:




4. Collect all the parts, tools and misc. things and, head to the car. Remove the stock mirror.



   Give it a whack at the bottom towards the top to get it off the mount. Do not twist or turn the mirror as you may have read elsewhere. It doesn’t apply to the Indian Polo/Vento variants.



   If it doesn’t budge, use a mallet as shown above.

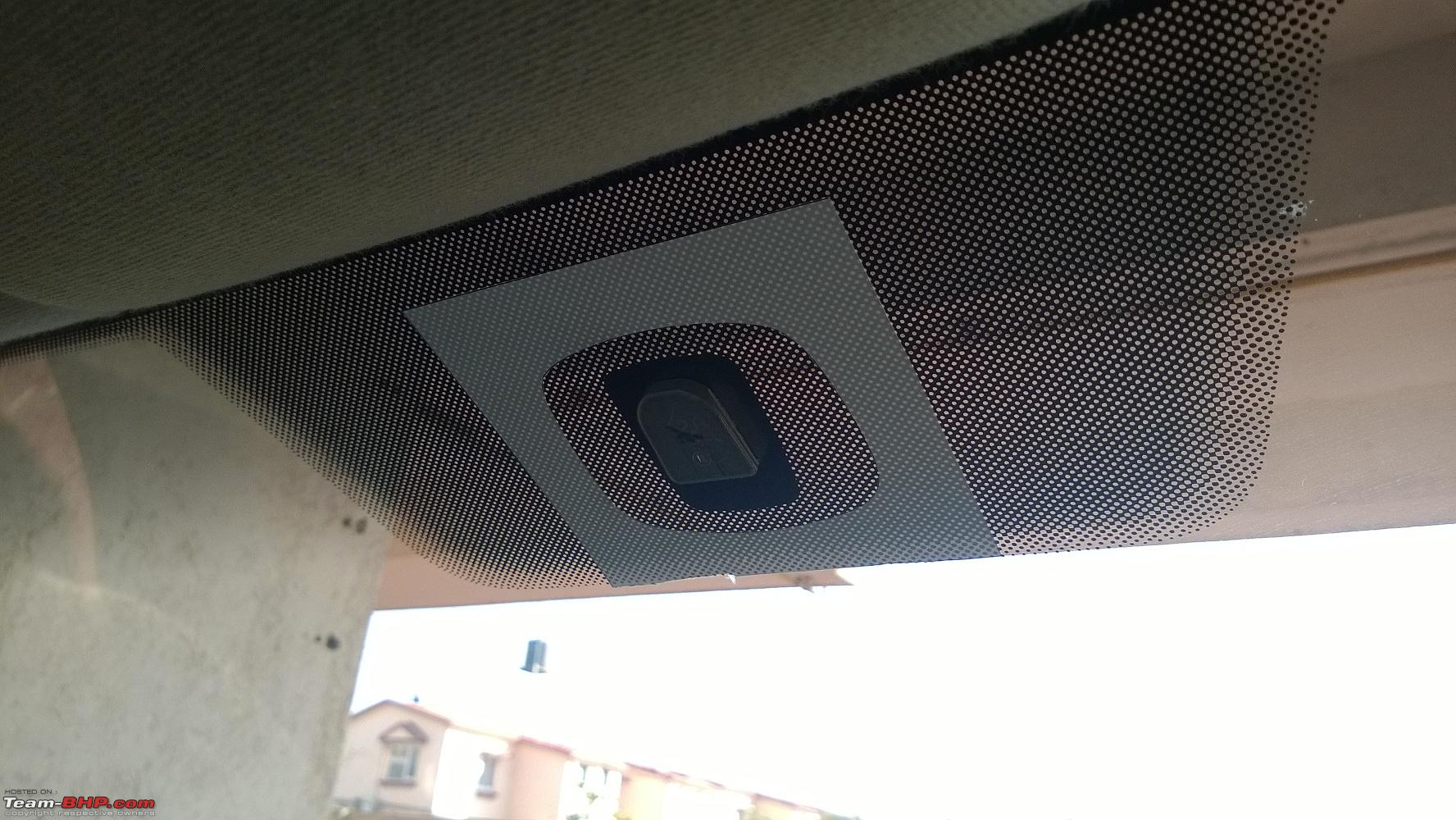

5. Stick the template on the self-adhesive paper on the windshield around the stock mount:



   Ensure that the center line on the cut-out matches the center line of the mount to ensure symmetry.

   We do not intend to use the stock mount anymore and removing it can be painful as it requires heating the mount to weaken the glue using a heat gun, scraping the remains of the glue, sanding it etc. If one isn’t careful, it can crack the windshield. I chose to leave it as it is. The RLS can be mounted on a different location of the windshield; I intend to do it this way.


6. Tear away 2 equal parts of the masking tape (say, 200 mm in length) and stick one end somewhere (ensure the tapes don’t coil!) on the dashboard for easy access. Do this step before attempting to stick the mount on the windshield.


7. Squeeze 2 equal parts of the Bondtite tubes on a piece of cardboard or a discarded visiting card and using a toothpick mix the 2 parts thoroughly to form a whitish looking compound.


8. Use the toothpick to apply the glue over the mount as shown below:



   Remember to apply a thin line of glue over the mount as the mount will squeeze out any excess glue outside over to the windshield.


9. Place the mount carefully on the exposed area of the template and keep it pressed for a minute or so while you apply the tapes kept aside over it.



   Curing time = 24 hours. Leave it aside for a day if you can and ensure that the mount isn’t exposed to direct sunlight during this period.


10. Using the cardboard template for the headliner, mark the area around the center of the headliner. Use the utility knife to carefully cut the area as shown:



    Remember to do this step carefully as an ungainly large cut will make the trim a loose part and will keep sliding over the wire covers. I moved the driver seat to the AFT and reclined the seat-back positioning like this:



    Once the piece is cut from the headliner, place the trim over it. The trim should have a snug fit with the headliner.


11. Using the trim removal tool, dismantle the driver-side A-pillar trim. Route the harness from the headliner (pull the edge near the windshield with the hand and insert the harness) and tape it to the A-pillar:



    Use the masking tape to stick it with the pillar. Route the remaining part of the harness towards the fuse box by removing the side trim of the dashboard and leave it aside.


12. The harness has 2 connectors at one end – a 6-pin connector for the mirror and a 3-pin connector for the RLS. The 2 connectors would be wound using a cloth tape from the factory. Undo a bit of this cloth tape so the 2 connectors can be separated.


13. After routing the harness through the gap between the headliner and the car’s ceiling, take out the 6-pin connector through the headliner trim as shown below:



    That’s all the work for day one.


14. On the second day after letting the glue cure, take out the tapes holding the mount and the adhesive paper around the mount:




15. Join the harness covers (part no. 4) together and slide it over the headliner trim while the other end rests on the mount as shown:




16. Connect the 6-pin connector to the mirror (the male connector on the mirror can rotate to some extent) and slide the mirror into the mount from the bottom to the top which will end with a reassuring click:




17. Use the mount cover (part no. 3) to cover both sides of the assembly.



    That completes the installation part.


18. Powering the mirror - open the fuse box and locate fuse no. 16. Route the fuse tap cable’s free end through the tiny hole on the top of the fuse box and pull it from the other side.



    Connect the positive wire from the harness originating from pin no. 1 of the 6-pin connector. I forget the color of the wire now; look at the pin designation of the 6-pin connector indicated on the connector, match the color of the wire and crimp the cable from the other end of the harness to the fuse tap cable. Plug the fuse into the slot.

    Connect the brown wire to GND – essentially, any nut screwed to the body of the car. These are available in plenty. Wind the cables for the RLS from the harness and tie it using a cable tie.

    Note: Although slot 16 is officially for the parking aid control unit, I decided to use this since I had a mini fuse tap cable lying around not the regular size. Otherwise the slot is no. 25 as indicated by the current flow diagram. You need a [b]5 A fuse[b] in the tap cable in any case

Results:







Here's a short clip on the working of the anti-glare function:

https://www.youtube.com/watch?v=yzazSLKtoPA

Shopping Experience:

I sourced the components from Aliexpress. The entire kit cost me $125 back in December 2015 including an extra mount for the RLS and shipping through Hong Kong post. The consignment reached me in less than 2 weeks and no customs duties were charged. The dealer was “Landsounds Technology Co.” and the contact was Tank Tao. I’ve sourced a lot of OEM parts from him and he was helpful as always.

That would be all. I'll update this thread when I install the RLS on the windshield.

Let me know if you have any queries!

PS: Coming up next - puddle lamps installation. Coming up later - Front parking sensors installation + PDC unit upgrade.
