Using an Android Smartphone as a Head-Unit

datvichrox2 · 19th February 2016, 12:03

This was going to be a proof of concept of an idea that has been gnawing at me for a while. Its a hobby project that I did on my 2004 Palio 1.2 and I am happy with the way it has turned out.

Using an Android Smartphone as a Head-Unit-project-intro.jpg

What I have in my car currently, this came with the car when I bought it used in 2008:

Blaupunkt LongBeach c31 - cassette player , with aux input at the rear
Blaupunkt 542 speakers (4)

What I will have after this mod:
Android Phone which serves as audio head unit and navigator
(The Blaupunkt components will remain as it is)

If this works, it will make my 10 year old car-cassette player useful in 2016 as well.

Android phones can pretty much provide all the major functionality that is needed in a car - Audio Playback and Navigation. Even a cheap Android phone can replace a car head unit. It can also be made to respond to voice commands.

Installing a phone/tablet in a car has been done before - lookup Android Nexus7 in-car installations and many examples on t-bhp itself.

How this project differs is in the way inputs are handled. I hate interacting with touch screens in car entertainment systems - it takes a while to get things done because of the small buttons and menus and this can be distracting during driving.

The major features should be easily accessed and controlled with as few interactions as possible and with dedicated hardware controls.

This is where the Arduino Uno comes in. I will be adding hardware buttons, rotary encoders and program the Arduino Uno to respond to them. The Arduino Uno will communicate with the Android phone using bluetooth. The Arduino Uno tells the phone which button was pressed or which knob was turned and in which direction. The Phone can respond accordingly - this requires some custom programming to listen to specific commands over bluetooth, mentioned below.

A custom Android service in the phone will be listening solely to the Arduino Uno via bluetooth and based on the code that the Arduino sends, will perform actions on the Android phone.

Some of the actions that the custom Android app will trigger are as follows:

Launch Maps
Launch Music Player
Reduce / Increase Volume (this will be sent to the head unit)
Play Next Song
Play Prev Song
Pause/Play

The car cassette player which is currently installed will be put into AUX mode permanently and will take its audio input from the Android phone. It will continue to provide amplification and controlling of the car speakers. That will be its sole purpose.

Advantages of this system:

Can be updated easily by using custom apps on the Android and custom code on the Arduino.
Any car headunit can be used as long as it has AUX-input.
The car's ECU system can be read and displayed on the Android phone. If there's a problem with the car, you would know immediately.
Access to google maps and apps.
It can have its own sim card and data connection. I could send a remote message to the car and it could be programmed to respond with its current location.
Can be extended to support steering wheel controls as well.
Disadvantages of this system:

It is a complete D-I-Y (do-it-yourself) project and will take a long time to complete. I started this around 6 months ago and spend whatever time I get in the weekends.
It needs hardware customization as well, if you want it to be a plush-fit. This is needed to make it look professional.
Need to learn Android programming
Need to learn Arduino programming
Need to acquire Soldering skills and basic electronics design
The reason I chose a phone over a tablet, is because of the space available in the car. It is a single DIN space and I cannot put in a tablet as that would require a double DIN space.

Here is a picture depicting the components involved and how the communication happens between the devices:

Using an Android Smartphone as a Head-Unit-arduino-project.jpg

datvichrox2 · 19th February 2016, 12:32

Some pictures of the install:

Using an Android Smartphone as a Head-Unit-side-shot-compressed.jpg

Using an Android Smartphone as a Head-Unit-screenoff.jpg

With the screen off. Tasker turns off the screen 7 secs after the phone loses power. An app called DeepSleep Battery saver makes sure I don't loose too much battery when I don't use the car. So far I have seen that the battery drops at-most 1% when left overnight.

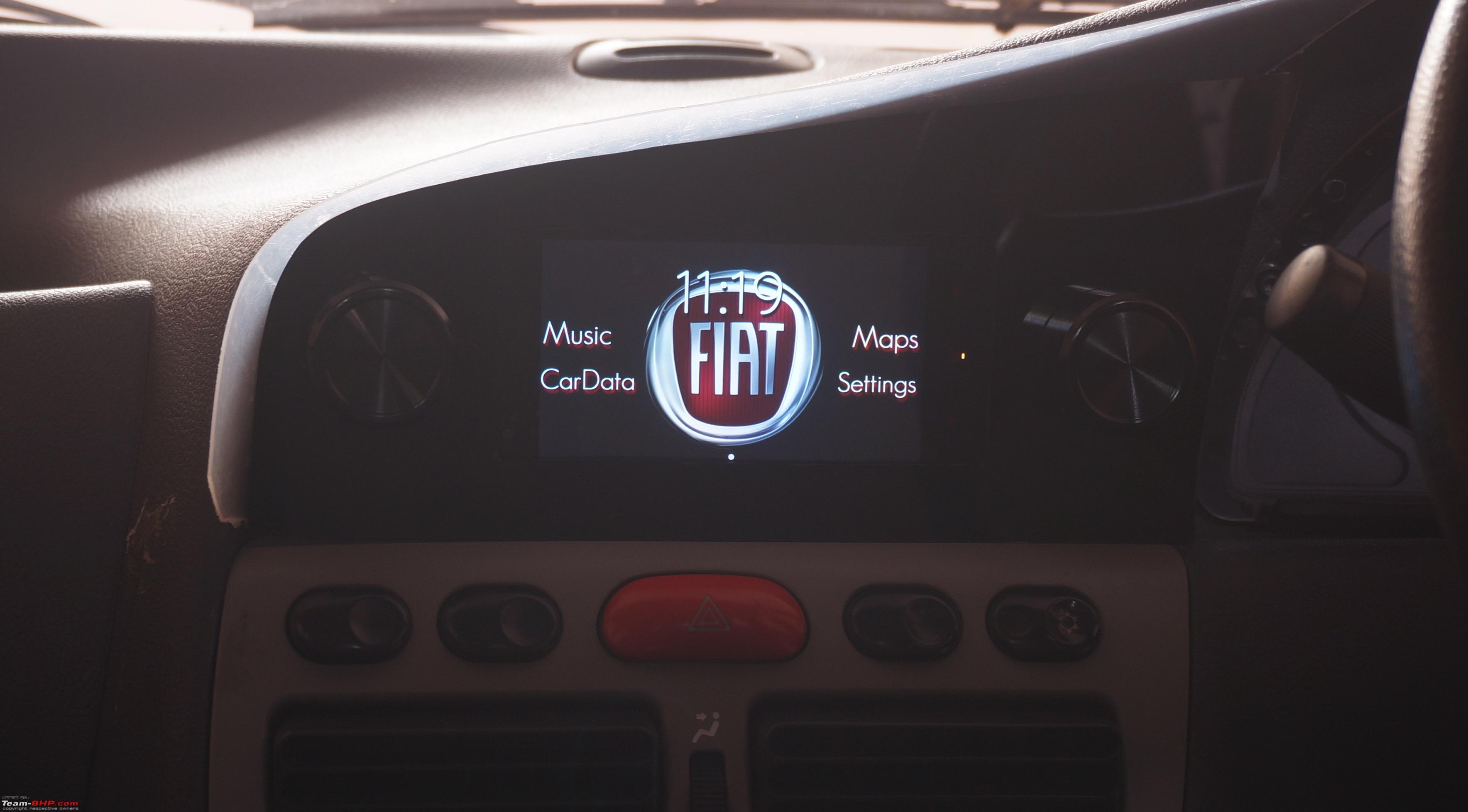

Using an Android Smartphone as a Head-Unit-homescreen.jpg

The Home screen. This is actually a really large custom Widget made using UCCW (available on google play).

Music - opens poweramp
Maps - opens gmaps
CarMode - still not functional, I am writing a custom app to talk to the Palio ECU and display some geeky stuff (since torque wont work

)

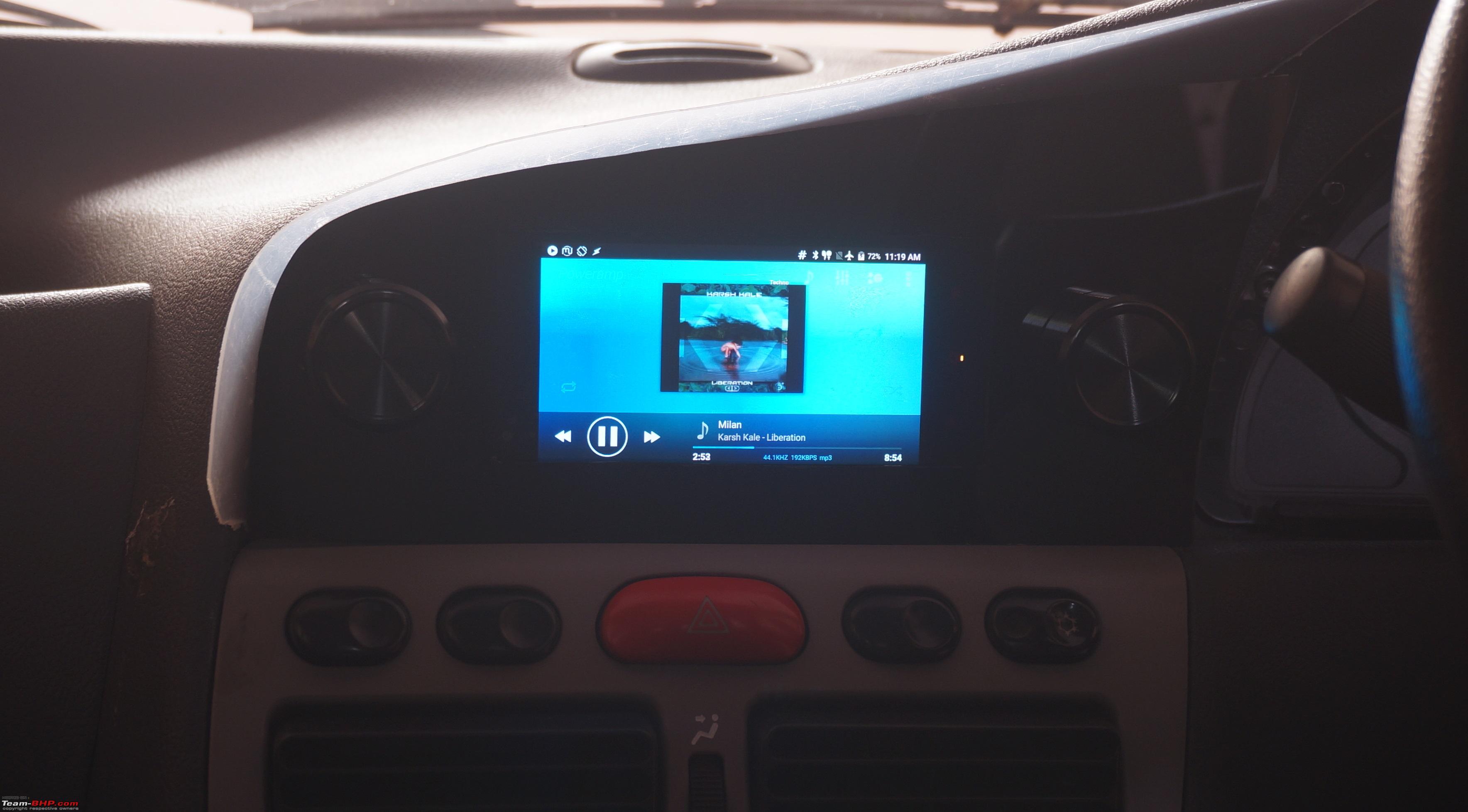

Using an Android Smartphone as a Head-Unit-musicplayer.jpg

PowerAmp music player.

Using an Android Smartphone as a Head-Unit-audiocontrols.jpg

PowerAmp has good equalizer controls and my current cheap speakers never sounded better. Yet to find a good skin for landscape mode.

Using an Android Smartphone as a Head-Unit-googlemaps.jpg

What I like most about having an android phone in the car - Google Maps.

Using an Android Smartphone as a Head-Unit-behind-panel-compressed.jpg

Behind the acrylic panel - Arduino Uno fitted into the Palio clock slot, with all with wiring going through it, including aux, usb power and wiring for the knobs (rotary encoders).

The black acrylic panel is held to the AC panel using 3 door magnets. Driven more than 600 kms with this at highway speeds. No issues.

The phone is a Xiaomi Redmi 1s, running Mokee Custom Rom Lollipop (way faster than stock).

The white sheet bordering the setup is there to cover the gap that is not covered by the black panel. This is because the Palio dashboard is curved and the panel is straight.

Following pic shows what the knobs do. The knobs rotate endlessly, and also have a center push button.

Using an Android Smartphone as a Head-Unit-knobs.jpg

More details later. Maybe I'll make a video showing how the knobs work.
Cheers!!

-Vimal

datvichrox2 · 19th February 2016, 12:33

Installing the Android phone at the location of the head-unit

Materials:

A good phone back cover, preferably made out of metal. I used an aluminum based back cover for the redmi.
Door magnets
Small machine screws with nuts
Couple of oversized nuts , to be used as spacers.

Using an Android Smartphone as a Head-Unit-back-cover.jpg

ALWAYS DISCONNECT THE NEGATIVE TERMINAL OF THE CAR BATTERY WHEN WORKING ON THE CAR. KEEP A FIRE EXTINGUISHER HANDY.

Initially, I made a cardboard cut-out to place in front of the head-unit, to visualize the space requirements and to mark where the door magnets have to be placed. What is important is to mark a straight line which will depict the new plane that we are going to create in front of the dashboard.

Using an Android Smartphone as a Head-Unit-cardboard-cutout.jpg

Take out the AC panel from the car so that you can get to work on it. In Palio, you can pry out the bottom most panel which contains the temperature control knobs. This will expose two screws which are holding the AC panel. After unscrewing them, you will have to again pry out the AC panel from the top, where it is held by clips.

On the straight line that was marked earlier, place the door magnets at equal distances and mark the holes that need to be drilled. Use screws with nuts, to secure the magnets to the AC Panel.

Next, we have to place the mobile phone holder on the center magnet, and mark the holes on them as well. The idea is to use the metal pieces that come with the door magnets to secure the phone holder to the center magnet. This step requires putting the AC panel back in the car to make sure the phone holder is at the center of the setup.

In the end, you will have something like this. This will hold the phone securely and you can drive without fear of anything coming apart.

Using an Android Smartphone as a Head-Unit-f1.jpg

Using an Android Smartphone as a Head-Unit-f2.jpg

Using an Android Smartphone as a Head-Unit-finishedfront.jpg

Using an Android Smartphone as a Head-Unit-finishedback.jpg

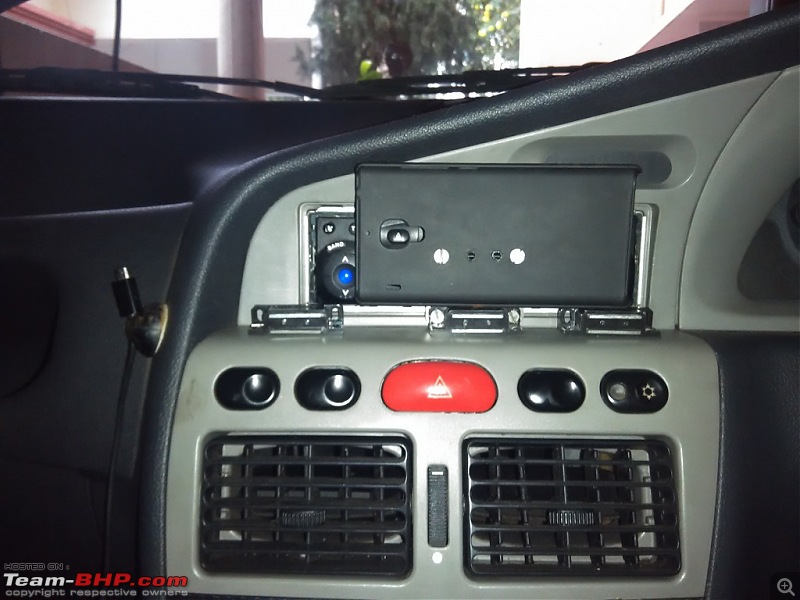

Using an Android Smartphone as a Head-Unit-finishedinstalled.jpg

The point of using magnets on a straight line is because the front-panel which has the knobs will be attached using these magnets.

-Vimal
